Pars Electrical :
Tray Size
Calculation / Easy Design / Fast |
|
One of the other
intelligent modules of Pars Plant
Software is Pars Electrical.
Pars Electrical
focuses on Designing Trays, Arranging
Cables, and 3D modeling of Trays according
to standards specially
"Huttell". |
|
These Types of
trays are available for users as template :
-
Standard Tray
-
Rack Tray
-
Ladder Tray
-
Cable Rote
-
Instrument Rote
-
Bus Duct Arc
-
Bus Duct Rectangle
|
Some Bold Features of
Pars Electrical can be pointed below :

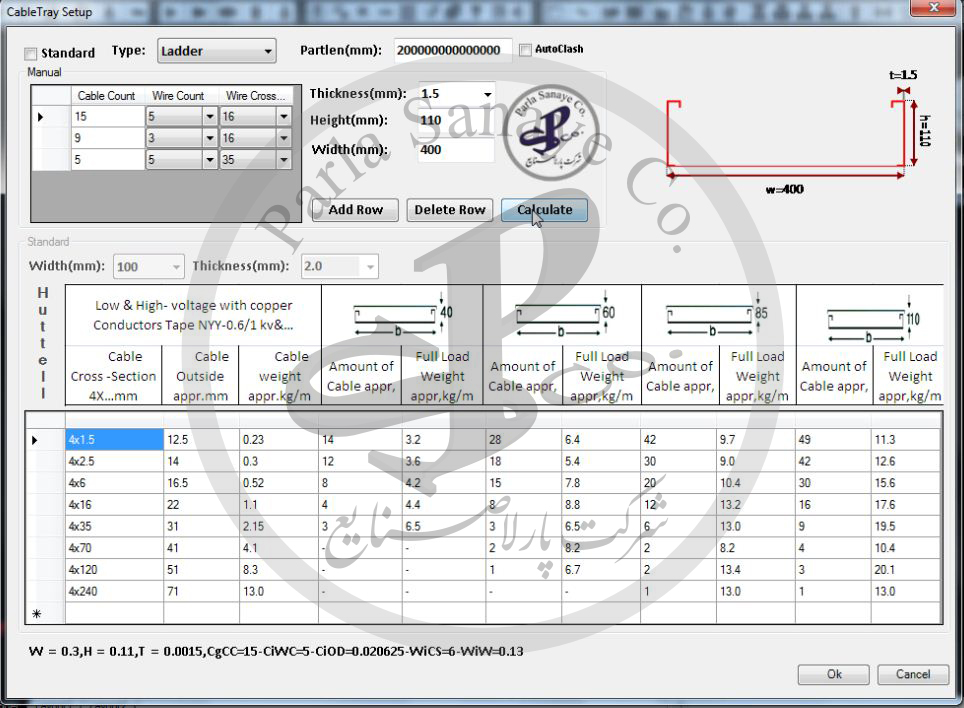

- Calculation
of the Length, Width and Height
of the Tray proportionate of Quantity and
Arrangement of the Cables according to
Huttell Standard.
-
Comprehensive Standard Cable Tray
DataBase for your use.
- User Defined Trays
- Easy Design and very
User Friendly

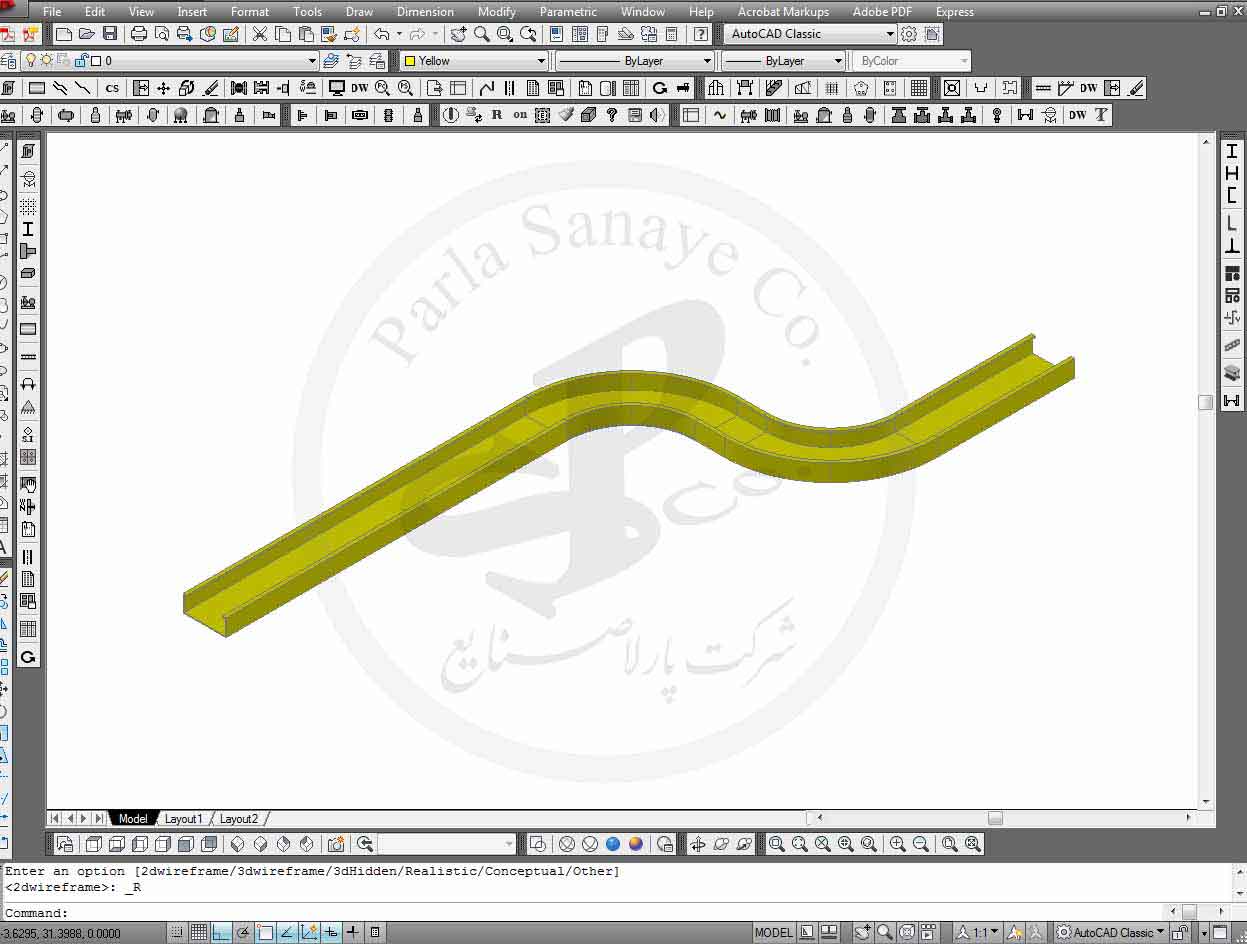

- Easy Drawing, all you need to
do is Giving Directions,
everything else is done by Pars Electrical
- Clash
Calculation
- Automatic design of
Elbows with different angles
- Ordering Trays on Top of each
other with specified distance

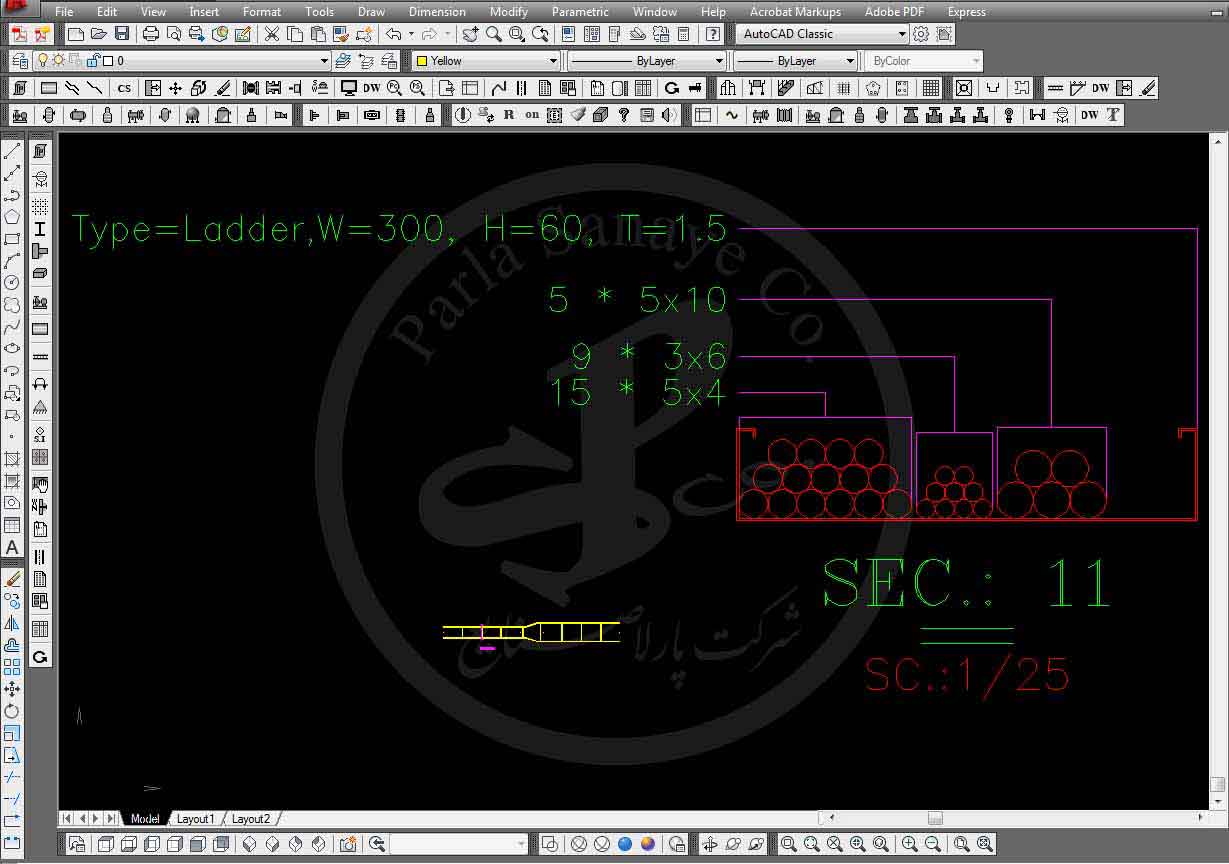

- Automatic
Section Drawing (which shows complete
data such as the quality and arrangement of
cables)

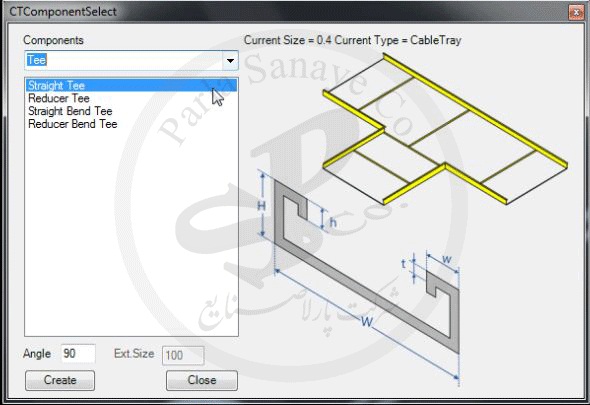

- Automatic Design and Model of
Bend, Tee, Tee Reducer,
Cross, Cross Reducer, Inside Riser, Outside
Riser, Concentric and Eccentric Reducer
according to Trays
- Hanger
and Slipper
Supporting both in Group and Single use.
- Complete and Denotative
MTO

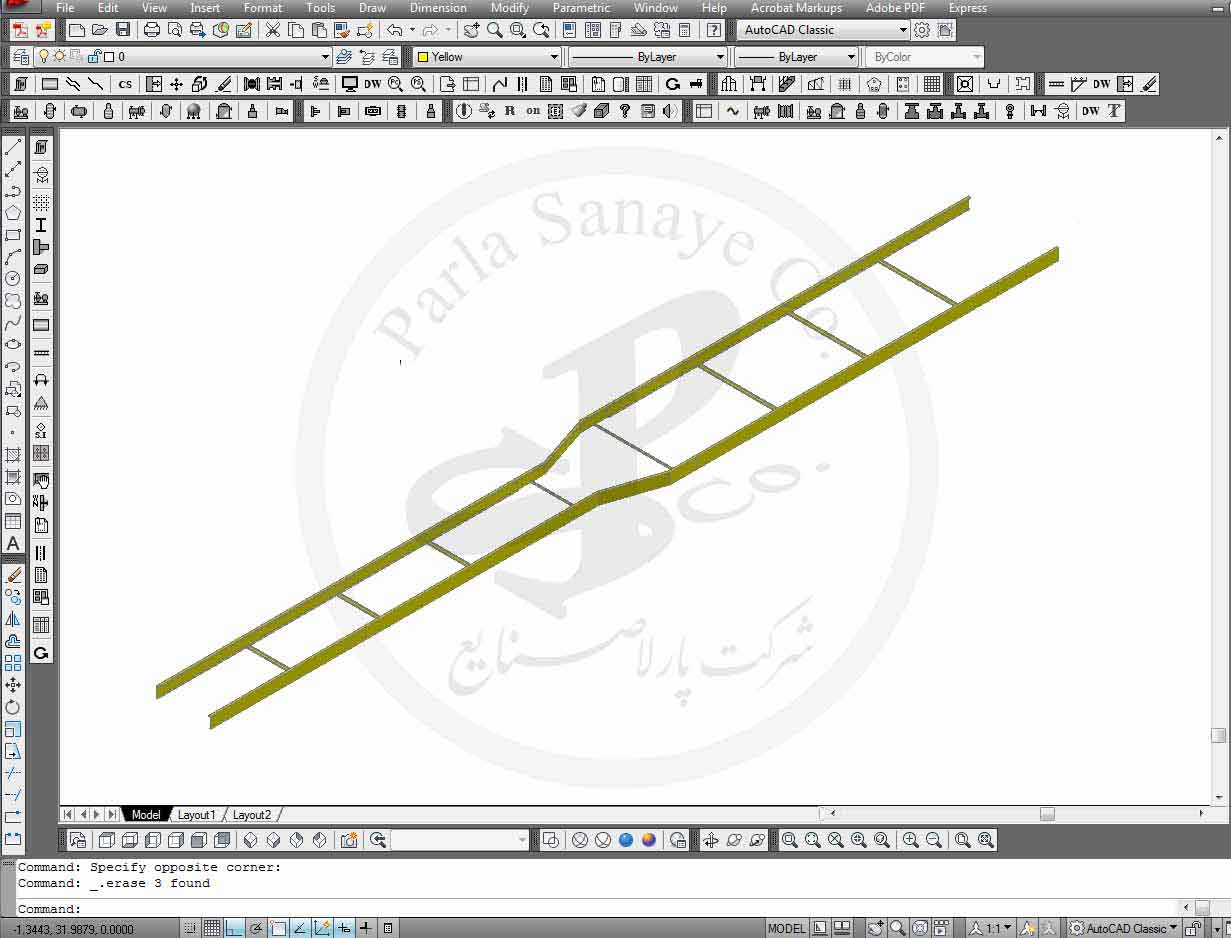

- Stretch
movement of the Trays at your call
-
Deleting
Component
Process
Sloped
Tray Process
Size
Reduction process and use of needed
component automatically.
|
 |
 |
 |
 |
|
|
| |
|
